Product Overview

The D88X26TL rim model is with 88mm depth, 26mm outer width and tubeless structure designs, which offer significant aerodynamic advantages, especially at higher speeds races, and can imporve the overall speed and efficiency. With Toray T700 and T800 high modulus and preminum carbon fiber materials,  can minimizes the weight, increases stiffness and strength, which can lead to quicker acceleration and easier climbing. The tubeless structure design provided lower rolling resistance, bettter traction, and fewer flats, which are compatible to clincher or tubeless tires.

Product Features and Advantages

Aerodynamics:

88mm depth rims are highly aerodynamic, reducing drag and allowing for faster speeds, especially on flat or rolloing terrain.

Light Weight:

High modulus and preminum Toray T700 and T800 carbon fiber materials have been applied on the rim production, make the wheels a light weight, high stiffness and strength advantages, which resulting in improved acceleration and climbing performance.

High Stiffness:

Carbon fiber wheels offer excellent stiffness, leading to more responsive handing and efficient power transfer.

Reduced Rolling Resistance:

19mm inner width, 26mm outer width tubeless structure design, can reduce rollowing resistance, further enhacing speed.

Fewer Flats:

Tubeless tires are less prone to pinch flats compared to traditional clincher tires with tubes.

High Temperature Resistance Braking Performance:

KOIBIKE own developed patented high TG 220 ℃ black Obsidian brake track, hightest braking temperature resistance can reach 200℃.

Special Lamination Design:

KOIBIKE in house R&D team design a special layup design on the rims, reduce the weight, increase the stiffness and impact resistance, which make the wheels more versatile for different kinds of riding or cycling environment.

Strict Quality Control:

KOBIKE do 100% tire pressure(150 PSI), flatness(＜0.2mm) and roundness(＜0.2mm) inspections before shipping, also offering 2 years warranty for our carbon rims.

Product Structure

Tire Structure:

Tubeless strcuture design, follow ETRTO standards to design the dimensions, compatible to tubeless and clincher tires, tire sizes are suitable from 23C to 42C.

Sidewalls:

50°，90°，70° multi-directional cross-lamination carbon fibers have been applied on the sidewall to increase the strength and stiffness, support inflation and anti-deformation strength.

Nipple Holes:

Reinforcement carbon fiber strips haven been applied on the spoke holes area, make it stronger for spoke tension resistance, which can resist at least 300 kgf spoke hole pull out strength, and use less fiber between the spoke hole areas to reduce the weight, optimize the whole layup at the same time.

Application Areas

Application areas for the D88X26TL carbon bicycle rim:

• Time Trials and Triathlons:

  The deep rim profile of 88mm wheels significantly reduces aerodynamic drag, making them ideal for these speed-focused events where riders maintain a consistent pace for extended periods.

• Road Cycling:

  The 88mm carbon wheels can gain an edge in speed and efficiency, especially on flat courses or for maintaining consistent speeds over long distances.

• Competitive Racing:

  The 88mm carbon wheels combine aerodynamics, stiffness and lightness, which can provide a distinct advantage, particularly in events with long stretches of flat terrain or high speed sections.

• High-Speed Sprints:

  The stiffness and aerodynamic advantages of the 88mm carbon wheels make them suitable for high-speed sprints, allowing for rapid acceleration and maintaining momentum in sprint finishes.

Technical Parameters

   100% Customizable

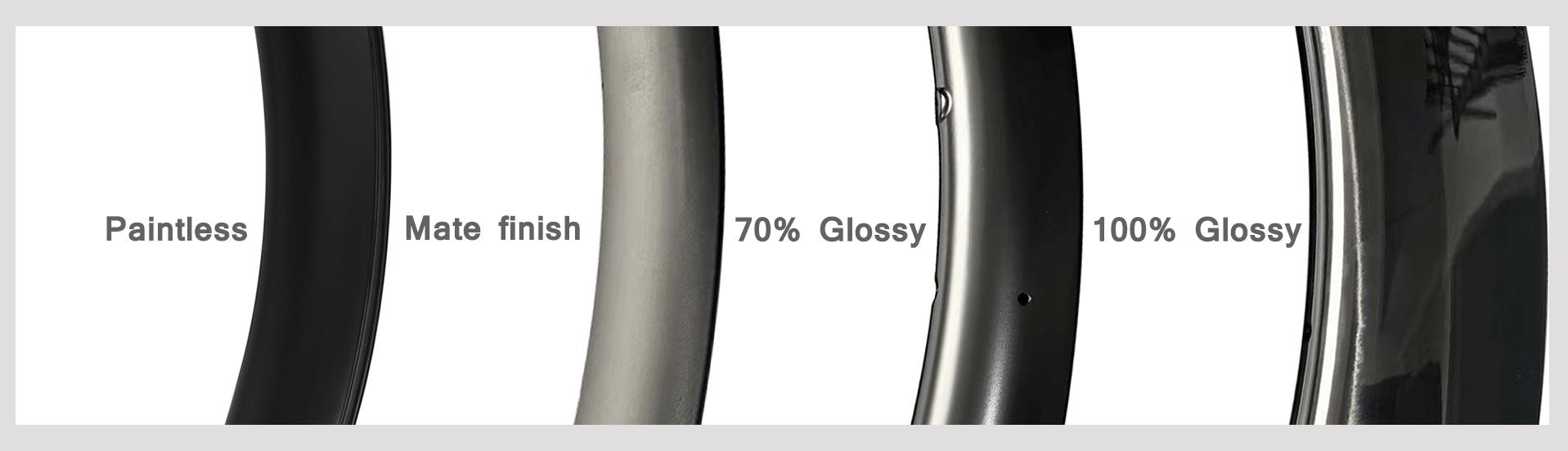

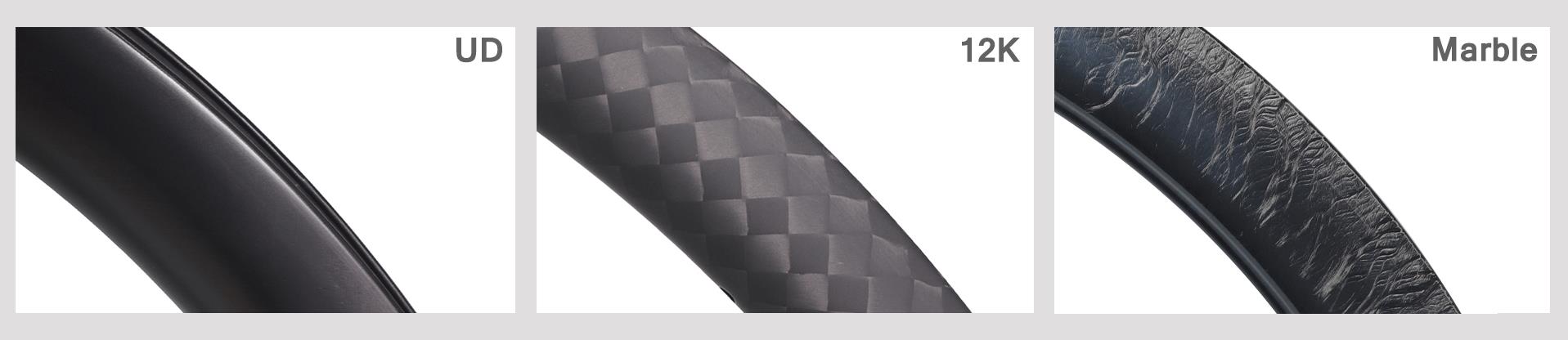

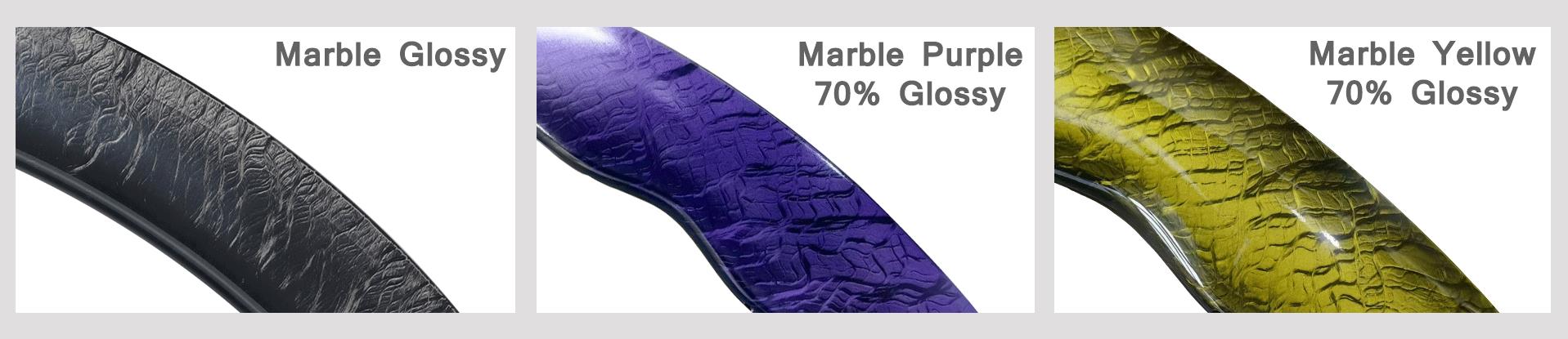

Customized Weaves & Finishes:

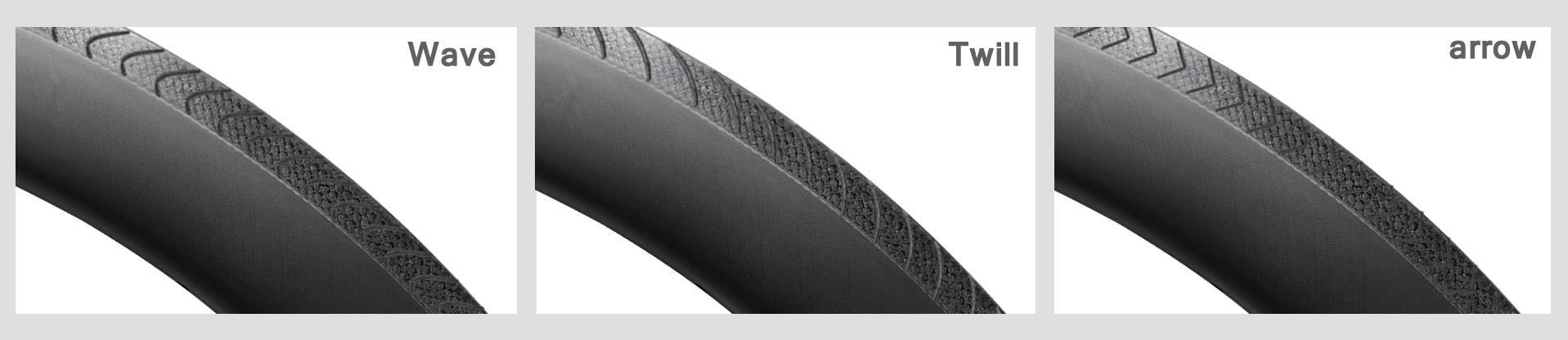

Customized Laser Engraving Brake Track:

Customized Holes:

Quality Control

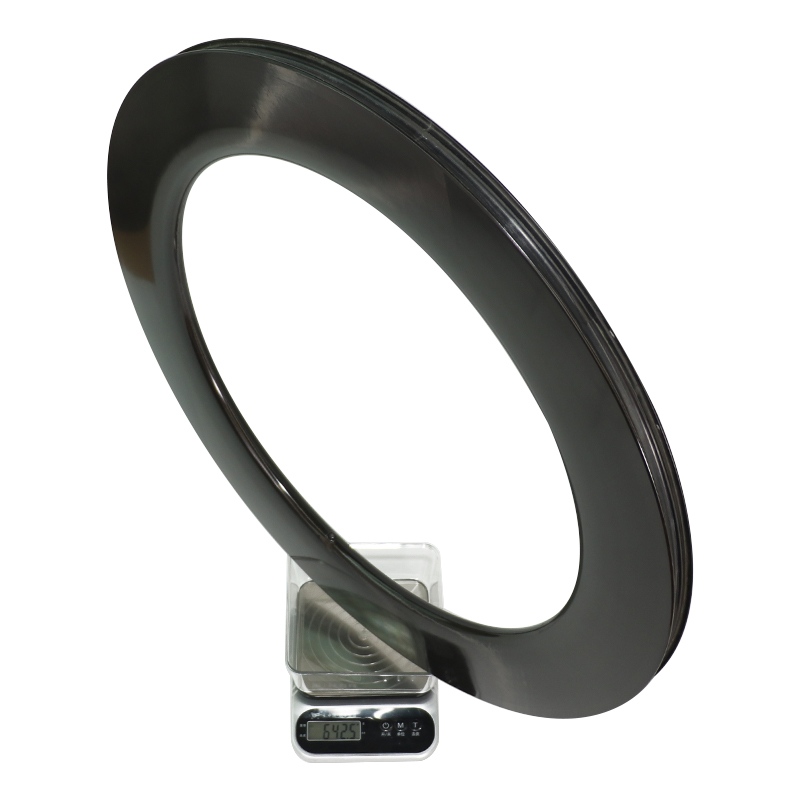

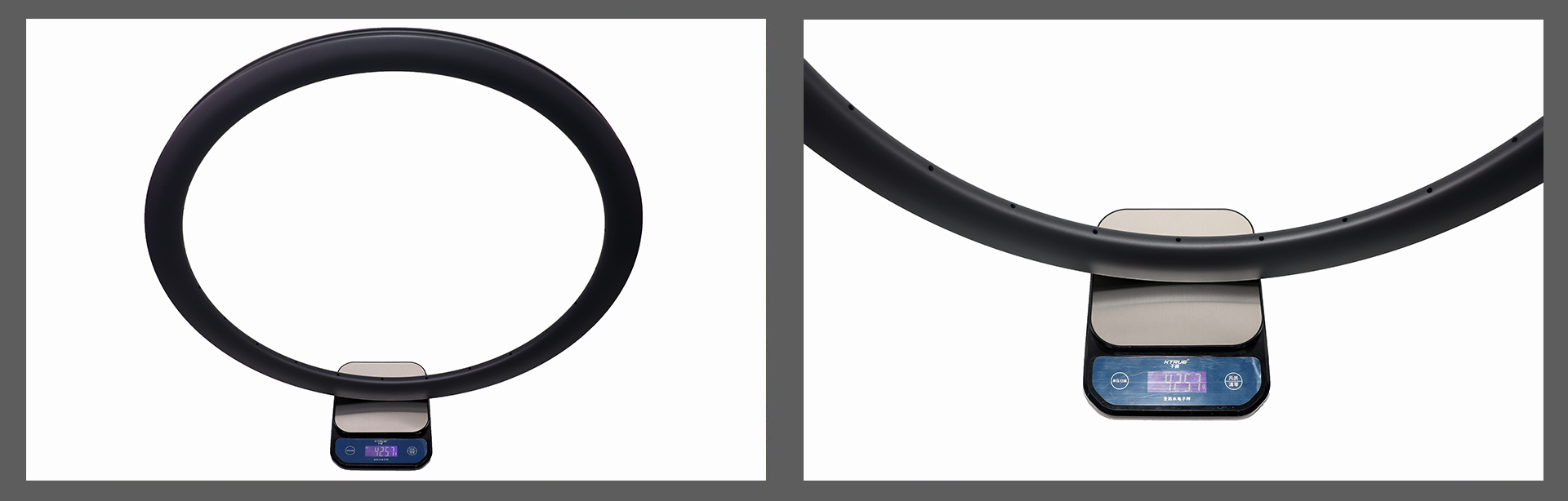

Weight Check:

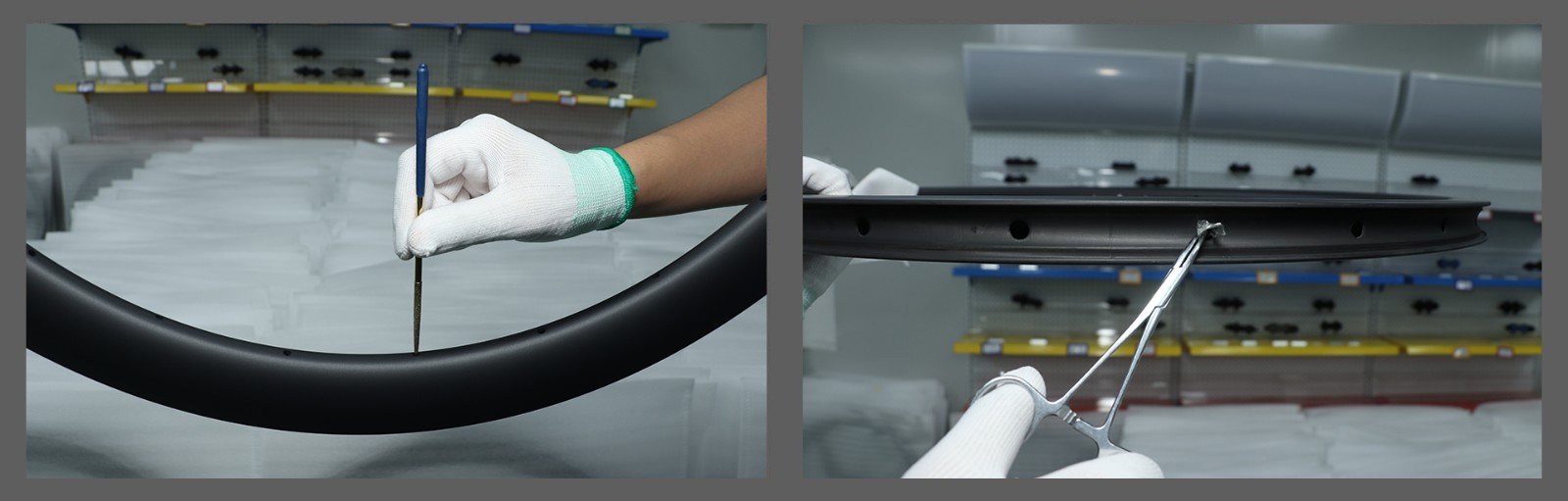

Clean Burrs & Residues:

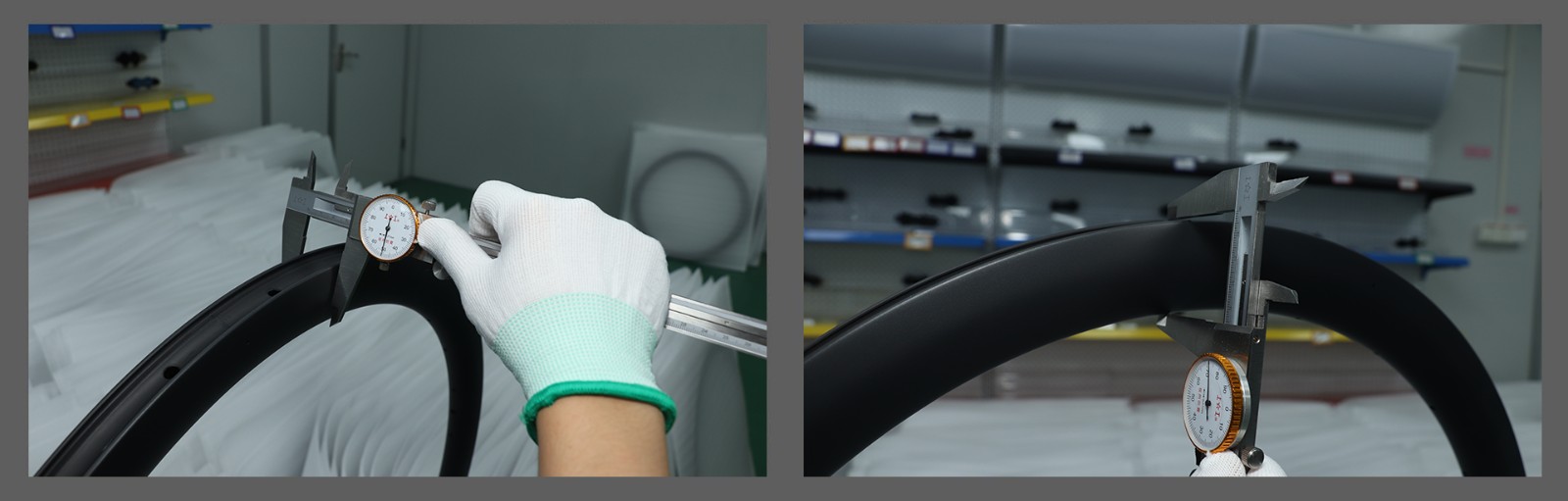

Rim Diameter Check:

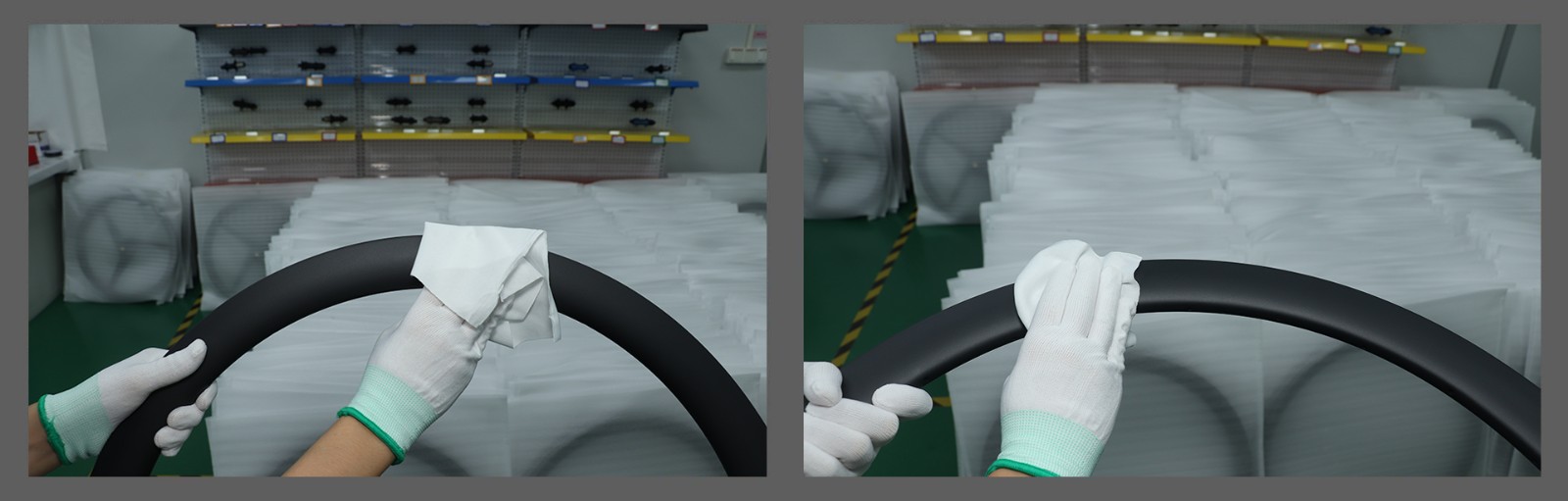

Cleaning:

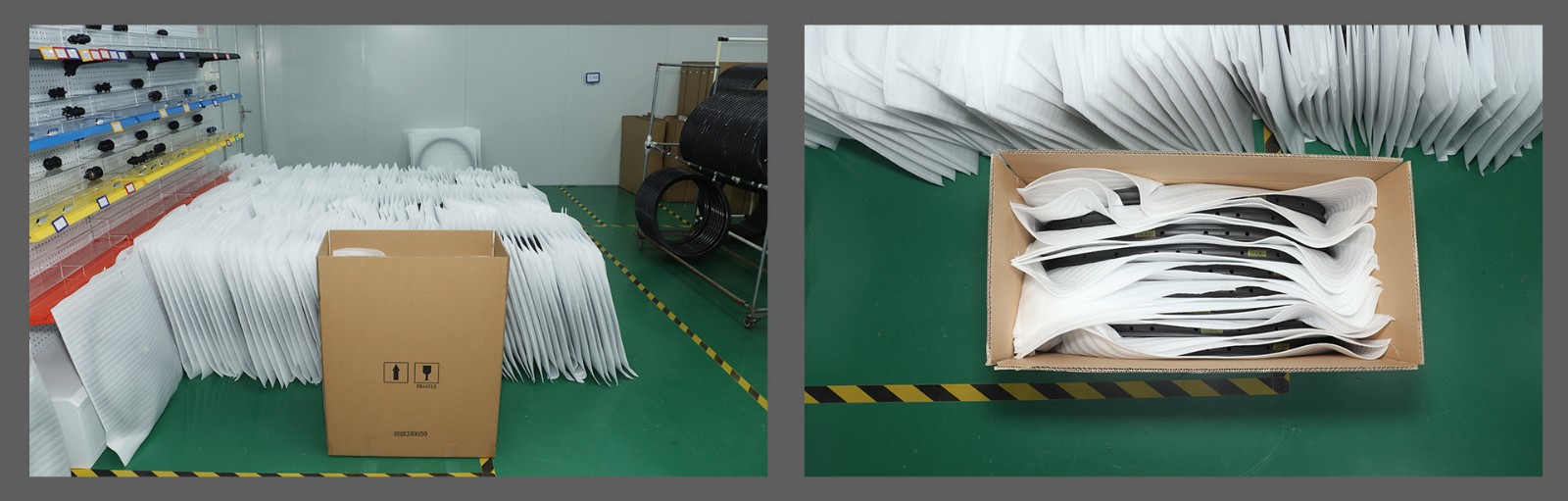

Packing:

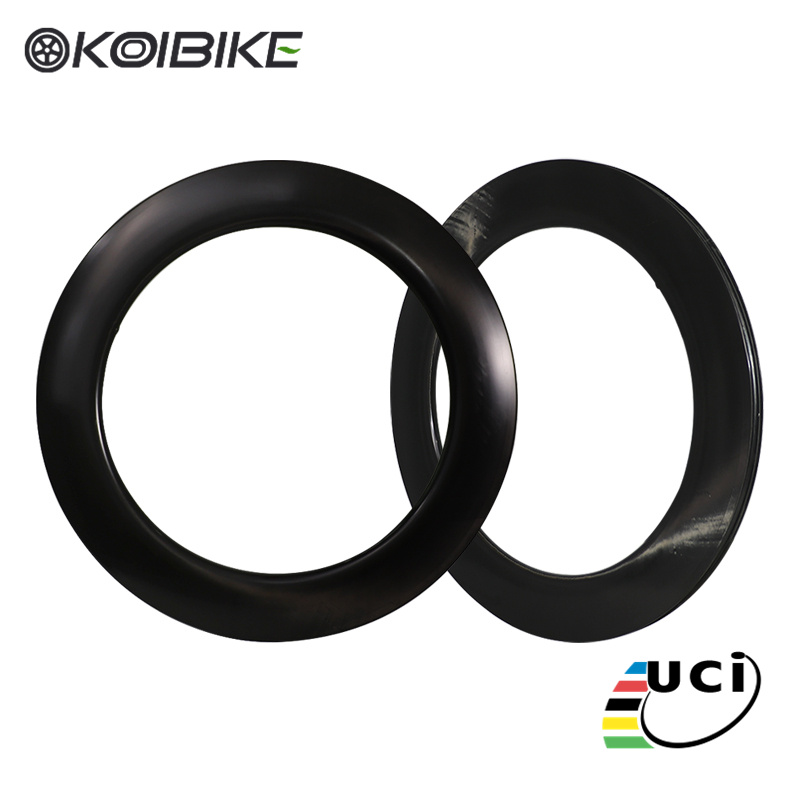

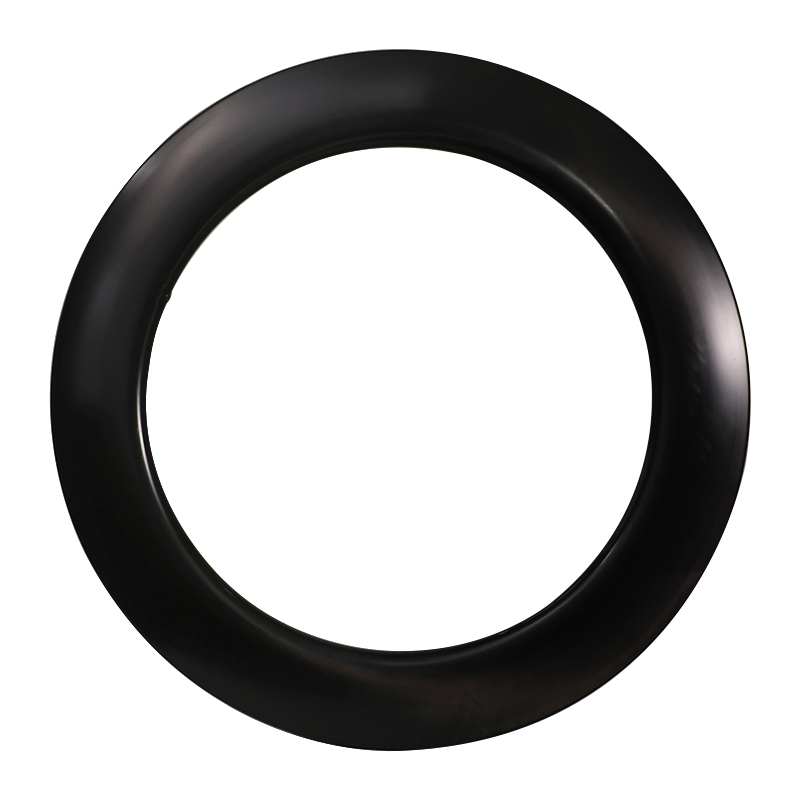

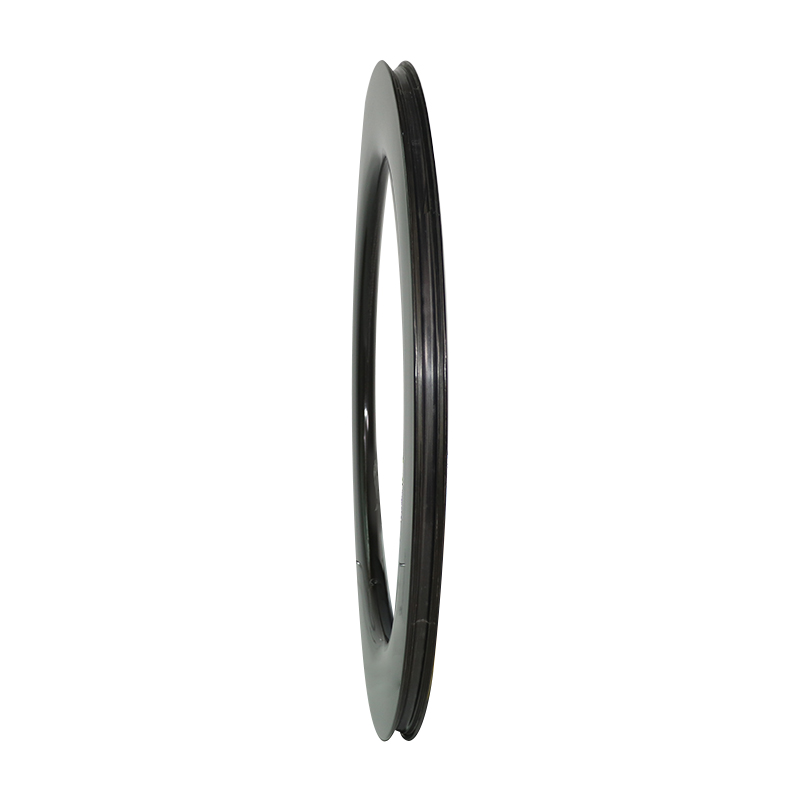

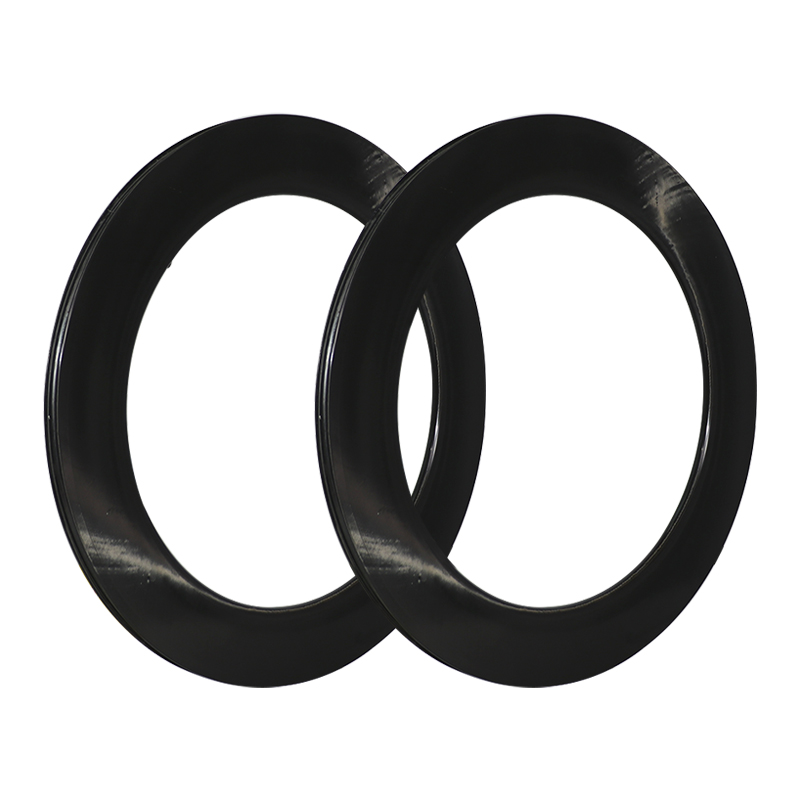

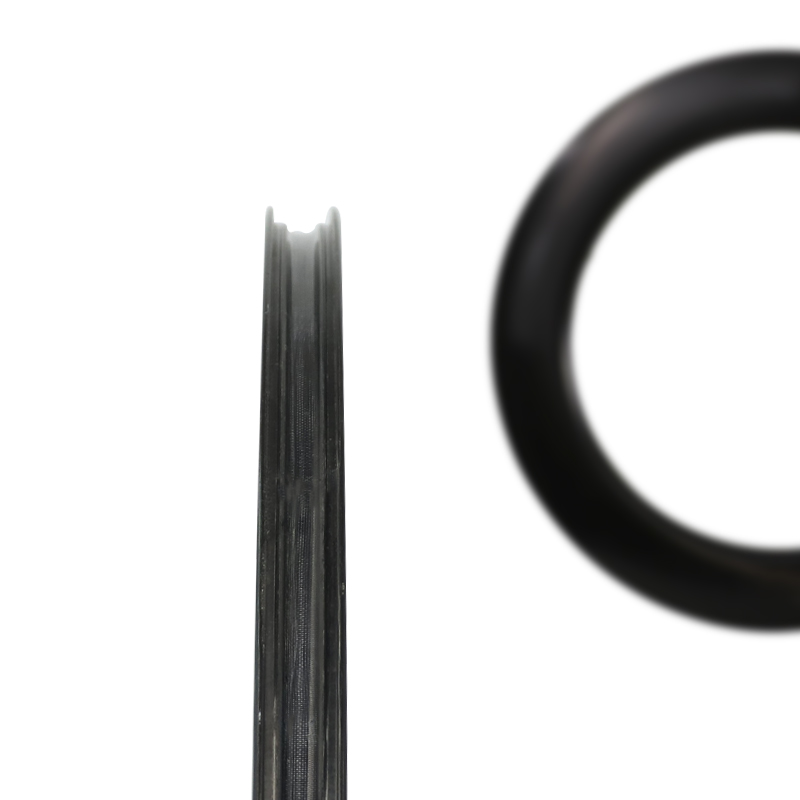

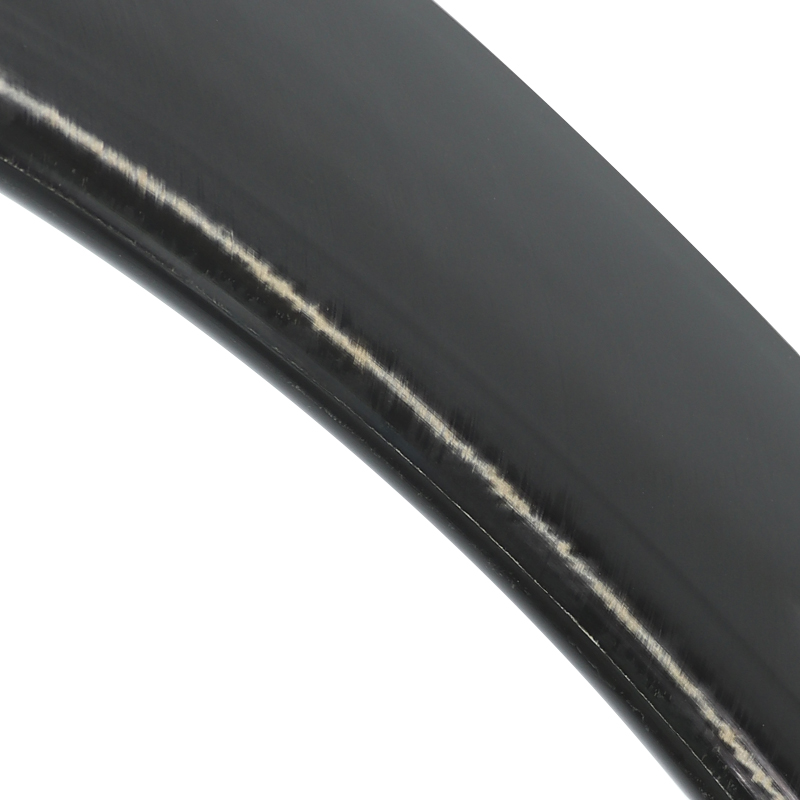

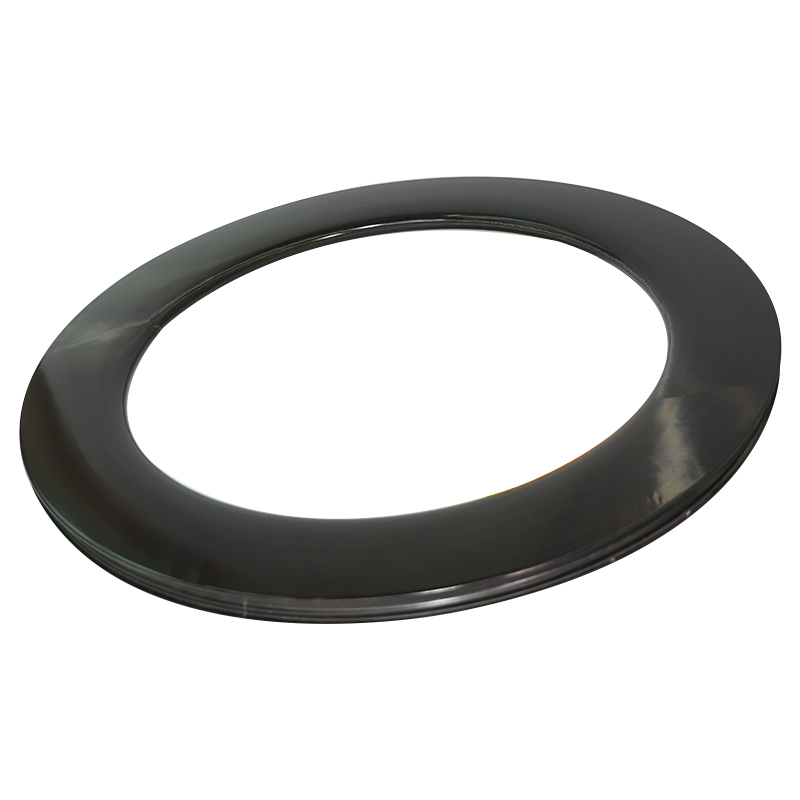

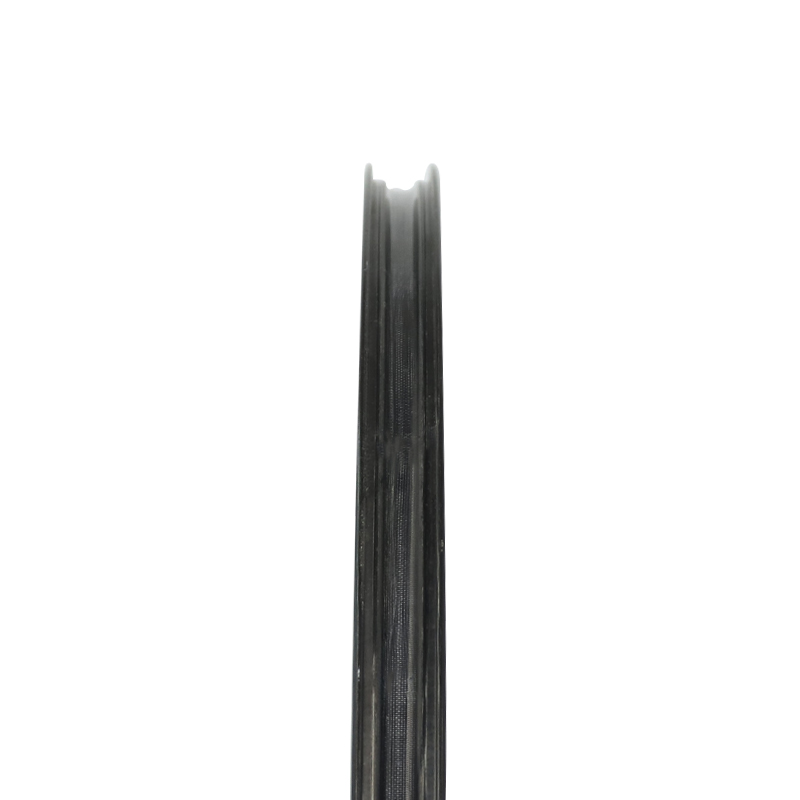

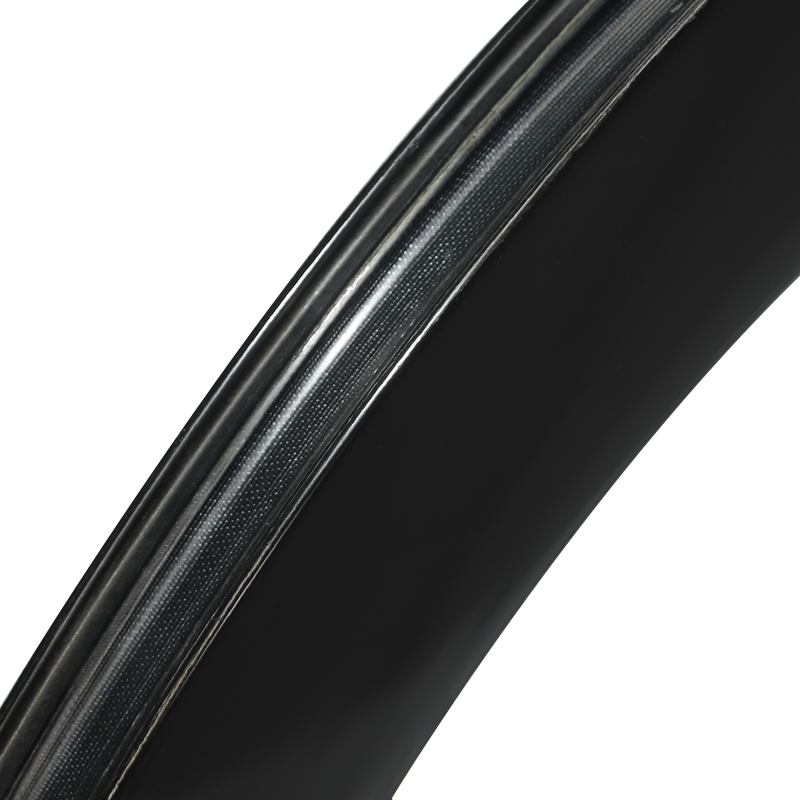

D88X26TL Product Show
