The DW45X28TL-CS-UL wheel set is a high-end bicycle wheel set that integrates light weight, performance and customization. It adopts an all-carbon fiber core structure and is specially designed for users pursuing an extreme riding experience.

The core components of the wheel set include carbon fiber rim, carbon fiber straight-pull spokes and aluminum alloy hub:

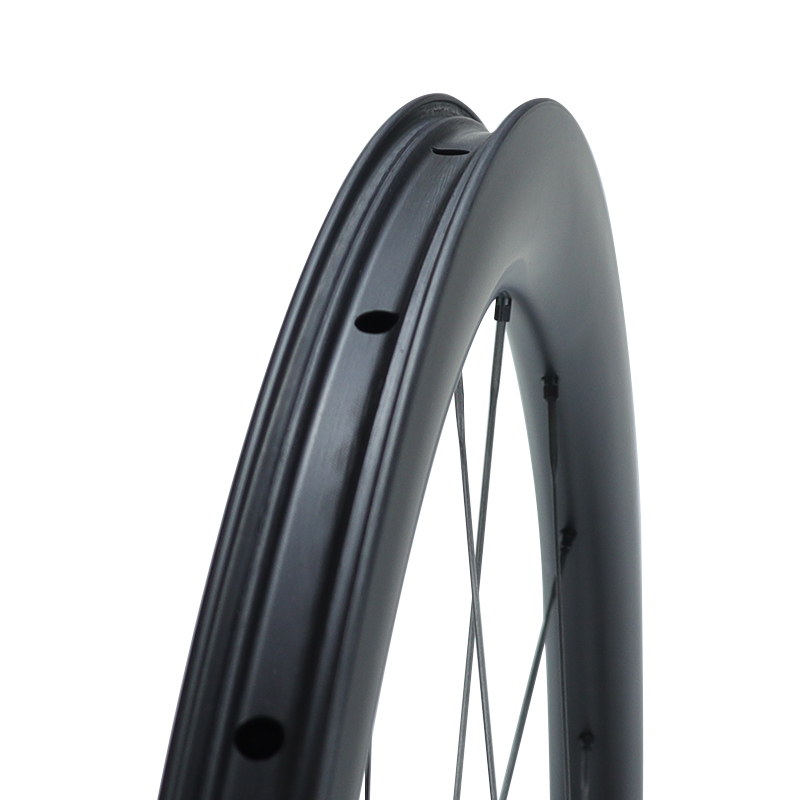

Carbon fiber rim: With dimensions of 45mm in height, 28mm in external width and 21mm in internal width, it not only balances aerodynamics and stability, but also is compatible with the tubeless tire system, improving grip and puncture resistance during riding. It supports customization of carbon fiber appearance and painting to meet personalized needs.

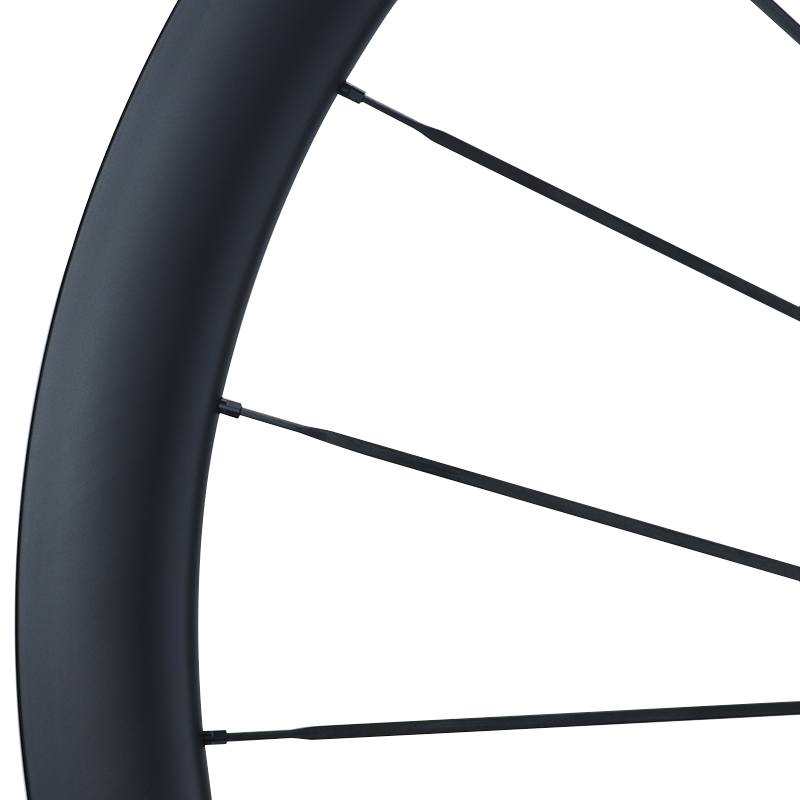

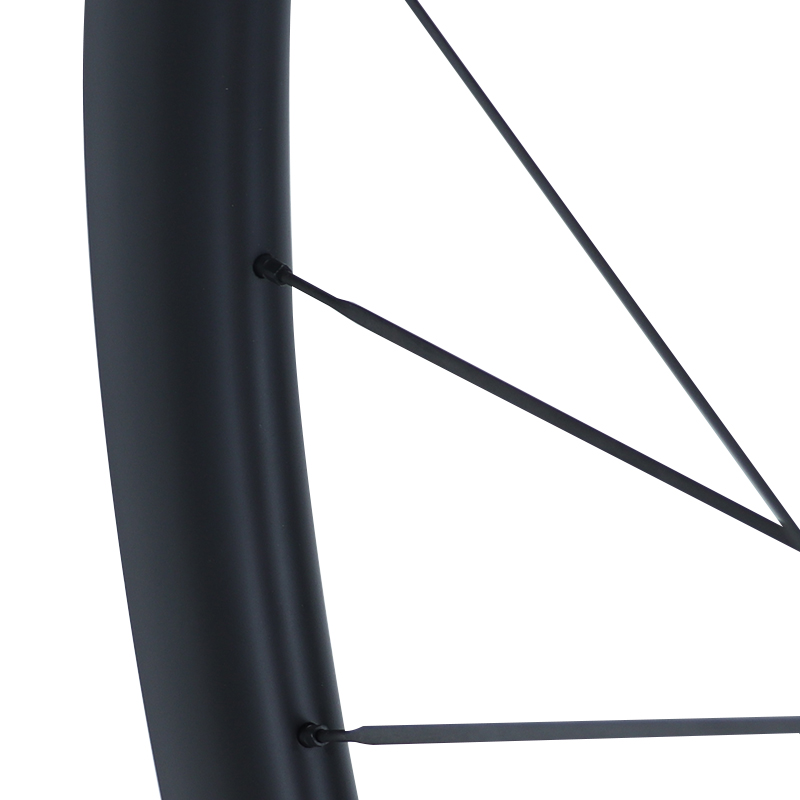

Carbon fiber spokes: Adopting a straight-pull design, each spoke weighs only 3g, paired with external aluminum alloy spoke nipples that weigh 0.3g each. While ensuring strength, it significantly reduces the overall weight of the wheel set. In addition, the number of spoke holes can be customized on demand to further optimize the rigidity and power feedback of the wheel set.

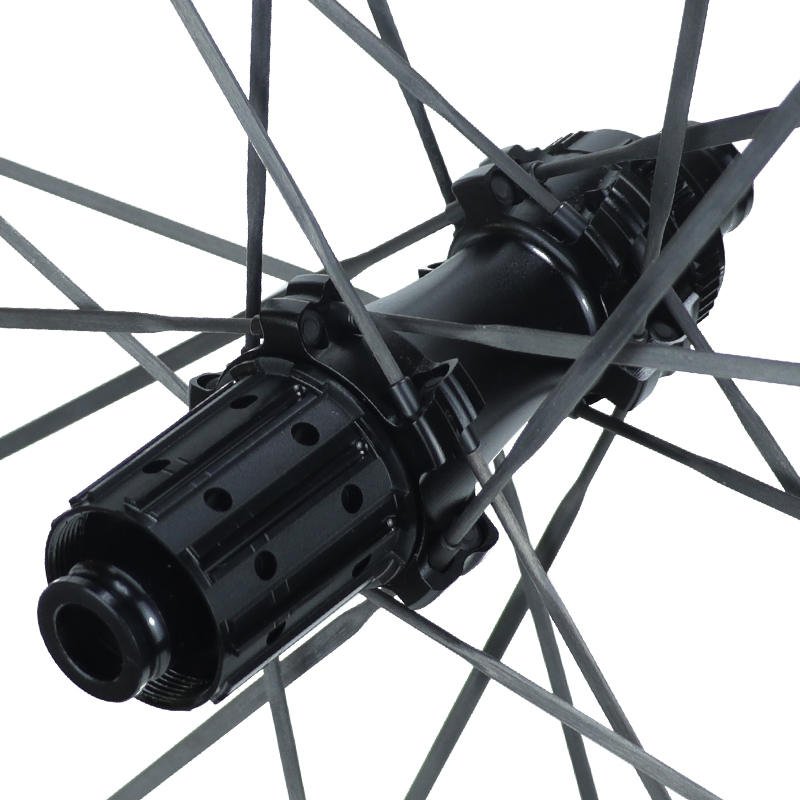

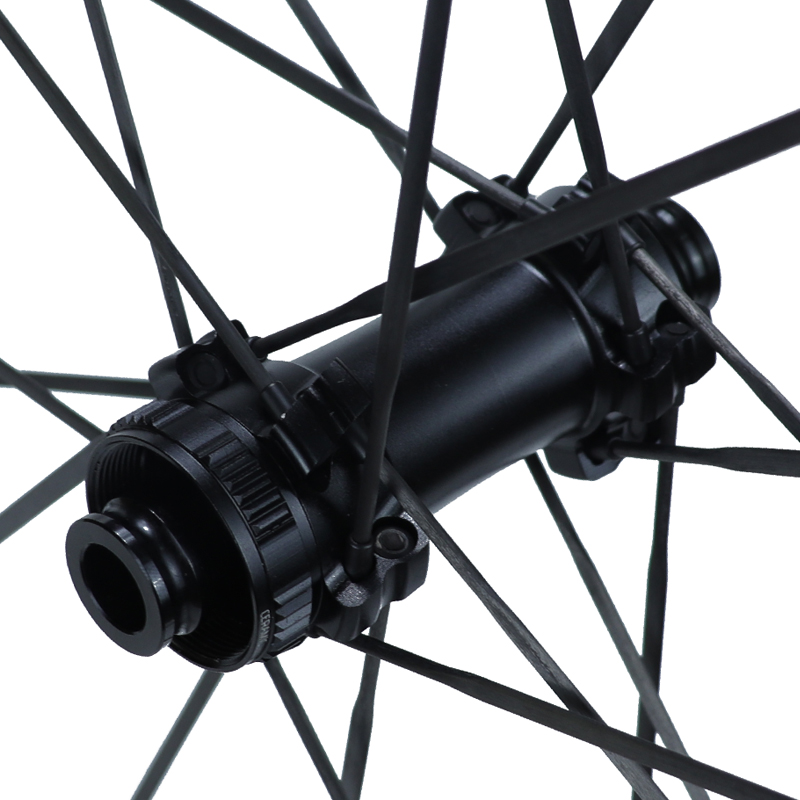

Aluminum alloy hub: It adopts a straight-pull structure and a center-lock disc brake system, providing reliable braking performance. It is compatible with 12x100mm (front) and 12x142mm (rear) thru-axle specifications. The freehub body can be selected from various models such as Shimano HG/MSR/N3W/XDR, adapting to a wide range of transmission systems. The overall black coating is consistent with the color of the spokes, showing a simple and high-quality texture.

Product Features and Advantages

High-End Materials for Ultimate Lightweight:

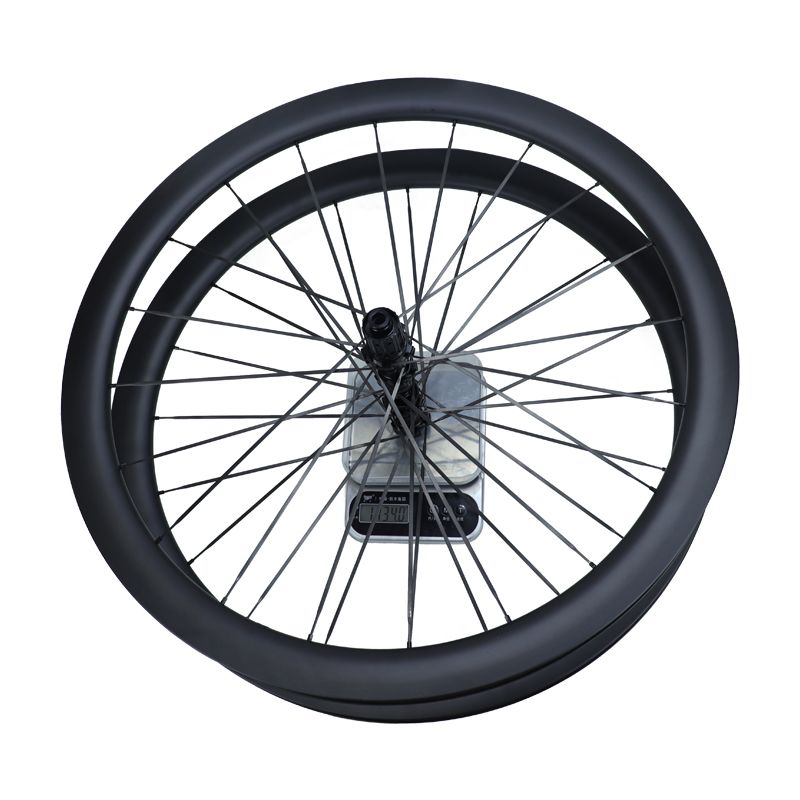

Adopting a high-end material combination – full carbon fiber rims and spokes paired with aluminum alloy hubs. This combination achieves extreme lightweight while ensuring structural strength, with a pair of wheel sets weighing only 1115±30g, ranking among the top echelons of lightweight in the industry. The ultra-light weight can significantly reduce riding inertia, improve climbing, acceleration, and emergency stop response speeds, reduce physical exertion during long-distance rides, and is especially suitable for competitions and high-intensity training scenarios.

Precise Sizing for Balancing Aerodynamics and Stability:

The precise size design of the rim presents a golden ratio of 45mm in height, 28mm in external width, and 21mm in internal width. The 45mm rim height optimizes aerodynamic performance, effectively reducing wind resistance; while the 28mm external width and 21mm internal width, combined with the tubeless tire system, can enhance road grip and cornering stability, and also provide better puncture resistance on wet and slippery roads, perfectly balancing aerodynamic efficiency and road stability.

Customization Attributes to Meet Personalized Needs:

It has customization attributes, supporting customization of carbon fiber appearance, painting, and the number of spoke holes. This allows users to not only have a high-performance tool that meets their needs but also create an exclusive visual identity, taking into account both functionality and aesthetic needs to satisfy personalized experiences.

Performance-Oriented Structure for Enhanced Riding Performance:

In terms of performance-oriented structure, carbon fiber straight-pull spokes (3g per spoke) are paired with external aluminum alloy spoke nipples (0.3g per nipple), further optimizing wheel set rigidity and power feedback; the aluminum alloy hub adopts a straight-pull design and a center-lock disc brake system. The center-lock disc brake can provide linear and strong braking force, ensuring riding safety even under complex road conditions and enhancing control confidence.

Wide Compatibility for Various Scenarios:

It has wide compatibility, adapting to the tubeless tire system, compatible with 12x100mm (front)/12x142mm (rear) thru-axle specifications, and the freehub body can be selected from various models such as Shimano HG/MSR/N3W/XDR. This enables it to be adapted to a variety of bike models and transmission systems, whether it is a road bike, gravel bike, or competition-level bicycle, reducing the threshold for users to upgrade.

Strong and Durable for Long-Term Use:

Meanwhile, the high strength of carbon fiber materials combined with the wear resistance of aluminum alloy hubs ensures the structural stability of the wheel set under high-pressure use, prolongs its service life, and achieves the coexistence of high strength and durability.

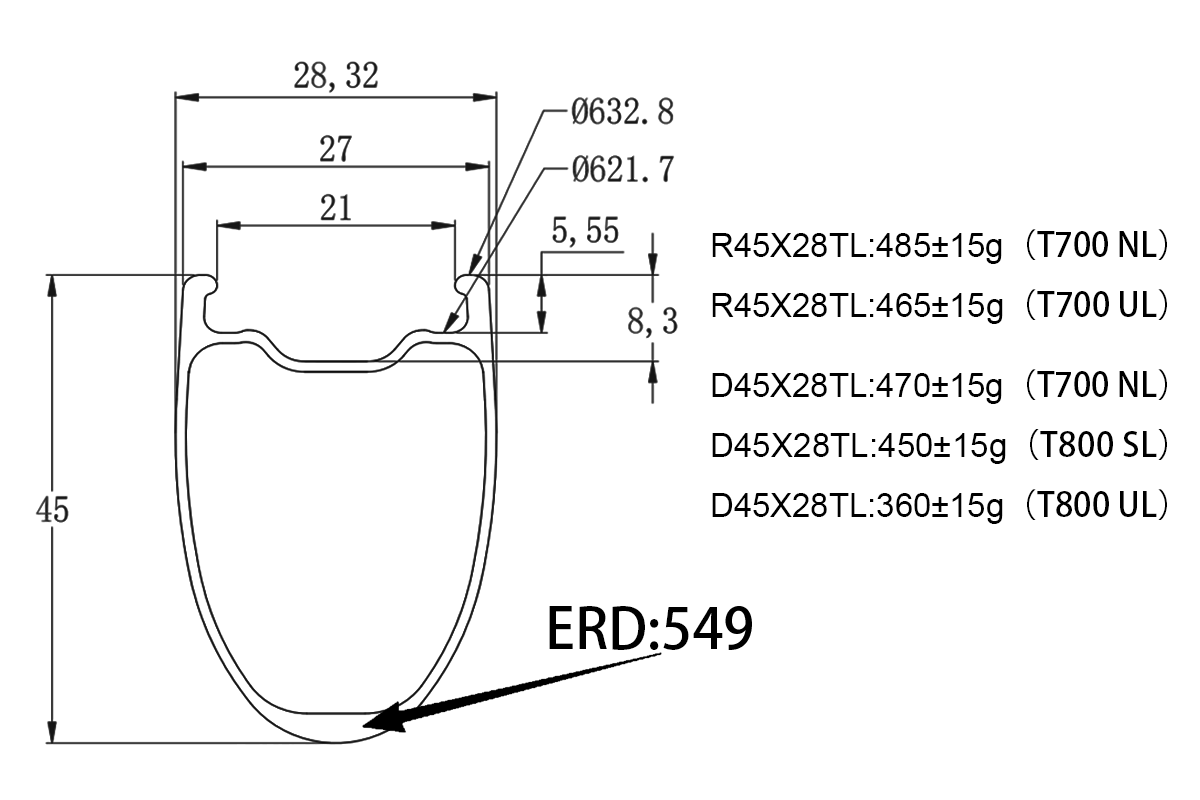

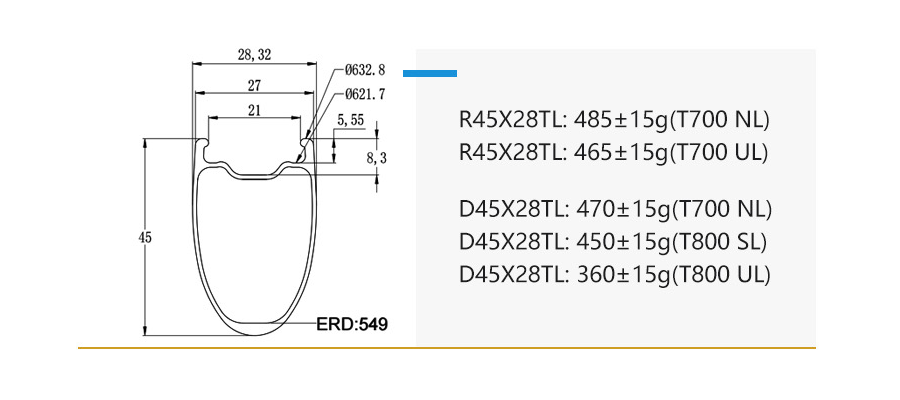

Product Drawing

Application Areas

Application areas for the DW45X28TL-CS-UL carbon spoke wheel:

• Road Bike Racing:

This wheel set can significantly enhance the performance of road bikes in races by virtue of its extreme lightweight (1115±30g per pair) and excellent aerodynamic performance. The 45mm-high rim design effectively reduces wind resistance, helping riders maintain high speeds during flat sprints and long-distance rides; while the lightweight feature reduces physical exertion on climbing sections, enabling riders to more easily cope with the challenges of high-intensity competitions. It is an ideal choice for professional road races.

• High-Intensity Training:

For cycling enthusiasts and professional athletes engaged in high-intensity training, the durability and stability of this wheel set are crucial. The combination of the high strength of carbon fiber materials and the wear resistance of aluminum alloy hubs allows it to withstand repeated high-intensity riding pressures. At the same time, the stable grip brought by the precise size design can help riders maintain good control under various training road conditions, improving training effects.

• Mountain Biking:

Mountain biking features rough and complex road conditions, which place extremely high demands on the strength, grip and adaptability of wheel sets. This wheel set is compatible with tubeless tire systems, which can enhance puncture resistance and grip on complex surfaces such as mud and gravel, making it easier for riders to control the bike on bumpy sections. Its wide compatibility (compatible with 12x100mm/12x142mm thru-axle specifications and various freehub body models) allows it to be adapted to mountain bike models. Coupled with the strong braking force provided by the center-lock disc brake system, it enables riders to ride safely in scenarios such as steep slopes and sharp bends, and calmly cope with various challenges in mountain environments.

• Personalized Commuting and Leisure Riding：

The feature of supporting customization of carbon fiber appearance, painting and the number of spoke holes enables this wheel set to meet the needs of commuters and leisure riders who pursue personalization. The unique appearance design can make the bicycle show personal style, while the lightweight and stable performance can also improve the comfort and efficiency of daily commuting, making every trip full of fun.

Technical Parameters

• D: Disc Brake

• W: Wheel

• 30: Depth/Height

• 28: Outer Width

• TL: Tubeless

• CS: Carbon Spoke

• UL: Ultra-light

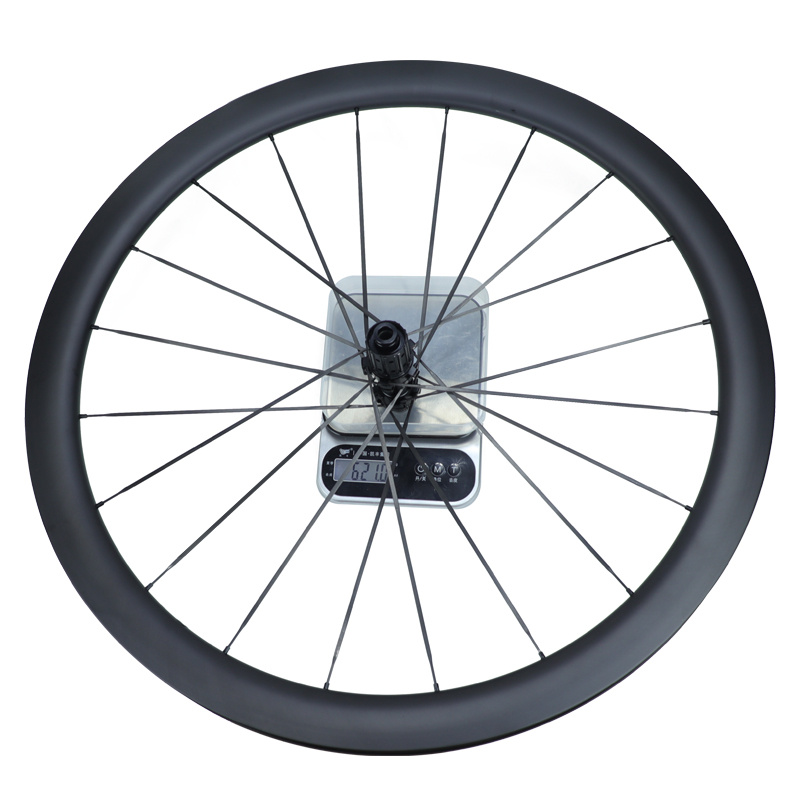

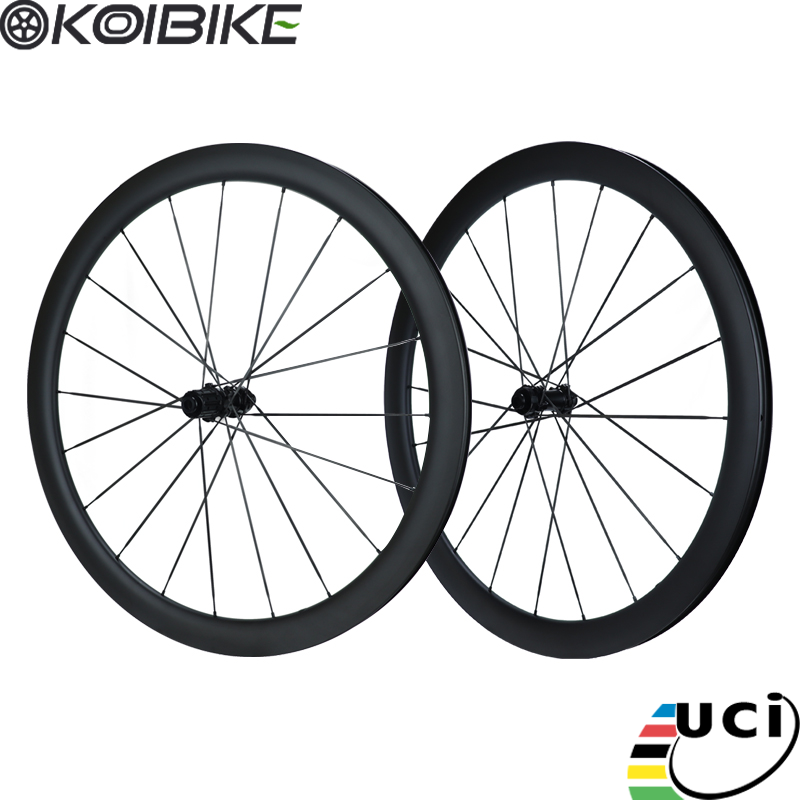

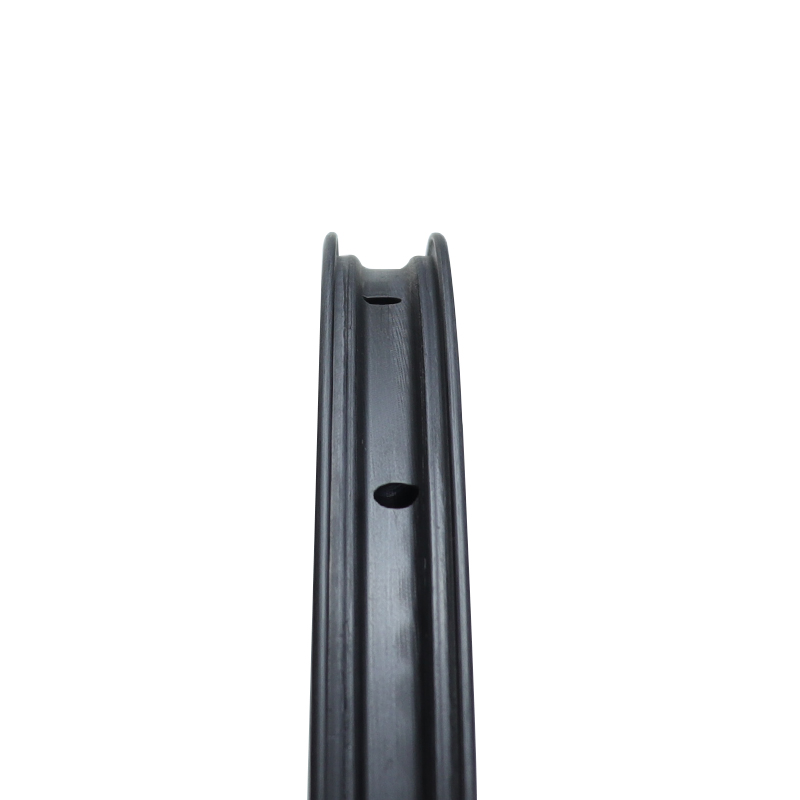

The DW45X28TL-CS Wheel Show
